We make Led Driver Cabinets, PCB Mounting Accessories & Custom designed Plastic Parts
We are manufacturers of LED Driver Housing, Power Adapter Housing for electronic and electrical products, PCB Mounting Pins and Accessories, Nylon Washers, ABS & PC Rivets, Electric Panel Mounting Accessories, Din Rail Clamp, Cable Glands from high quality plastics.
Leading manufacturer
We are within the business of providing end to finish solutions in plastic merchandise and services whereas delivering superior quality and worth to all our new and regular customers.
We provide on-time services to our customers.
About Us
About

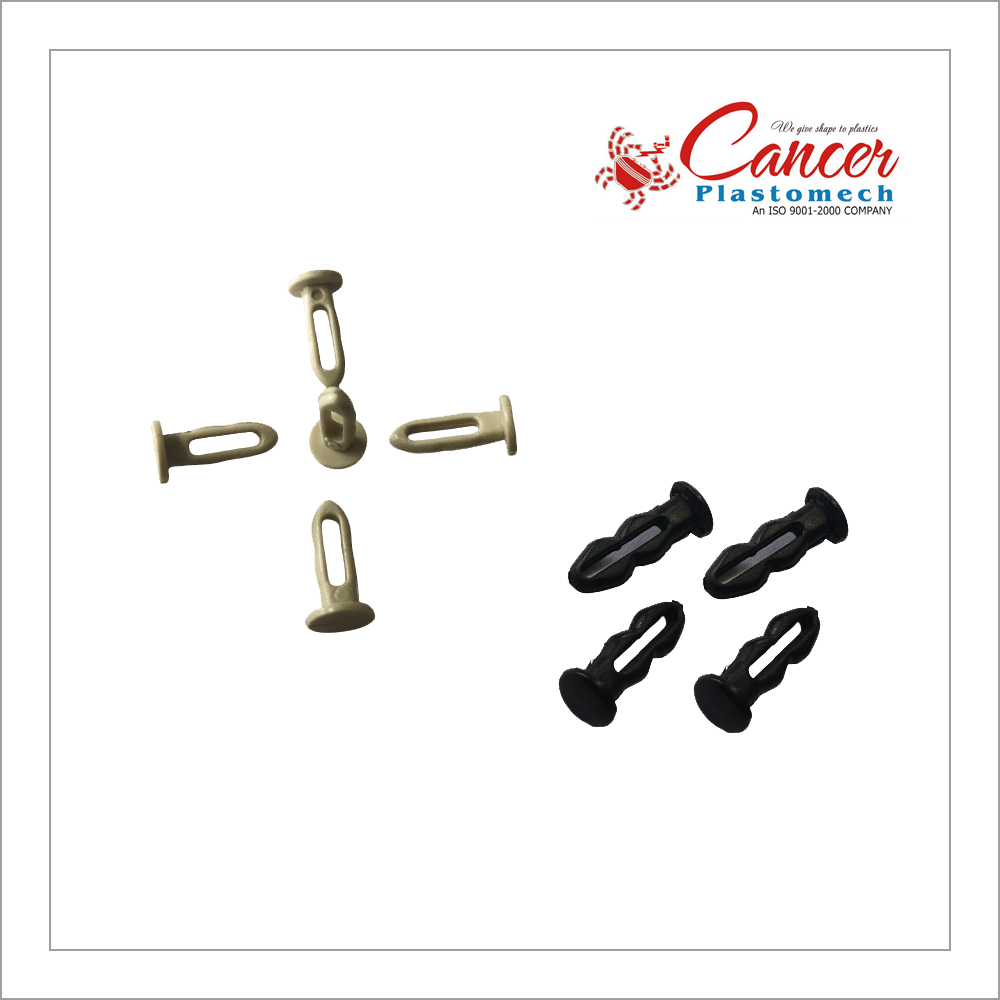

We have a range of LED Driver Enclosures varying in sizes and shape. In addition to driver housings we also manufacture PCB Mounting Accessories, Polycarbonate and Nylon Rivets, Nylon Washers, Delrin Gears, EPDM Rings, Plastic Coated Screw and Nut, Din Rail Clamp, Cable Glands etc.
There is a new addition to the Led Driver Family we have developed Aluminum Casing and Metal Well Housing too.
Mission
To provide quality and on time services and products to our customers.
Team
Company have a team of QC personal where no product leaves the factory without inspection assuring highest quality. Based on this, company has grown well within a very short period of time.
Products
Vast Range of Products
LED Driver Housing varying in different sizes and shapes from CP-1 to CP-20, Surge Suppressor Housing, Nylon Washers, PCB Snap Fittings Panel Mounting Accessories, Din Rail Clamps for Electric Panels, Cable Glands, Polycarbonate, and Nylon Rivets, etc. In addition to that we have Aluminum Housing, Metal well Housing of 40 watts and 80Watt.
Architectural Grade Reliability
Our products are made with high grade Plastic Materials and high quality fabrication methods.
Hitech Manufacturing Facilties
We have hi-tech manufacturing machines: PLC Control Fully Automatic Injection Molding Machines, CNC Milling Machine, CNC Wirecut, Spark Erosion, General Toolroom Machines. General Maintenance of machines are done every month to maintain the quality of products and molds.

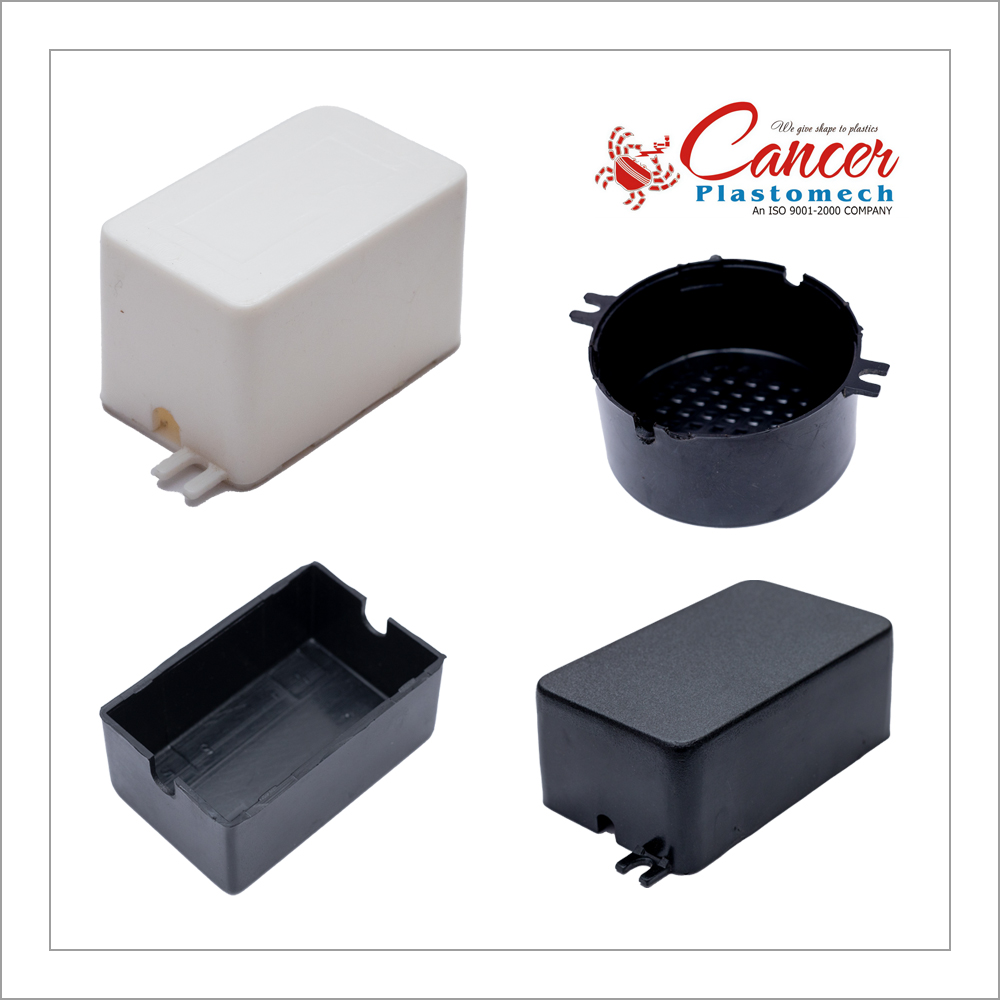

LED Driver Cabinets
Led Driver Cabinet CP-1
- LED Driver Enclosure CP-1 is made up of PC material.
- Internal Dimensions:45mm length, 17.8mm width and 21 mm height.
- Available in white / black or any customer specific color.
Led Driver Cabinet CP-2
- LED Driver Enclosure CP-2 is made of Polycarbonate material.
- Internal Dimensions:58mm length, 36mm width and 24 mm height.
- Available in black & white or any customer specific color.
Led Driver Cabinet CP-3
- LED Driver Enclosure CP-3 is made up of Polycarbonate material.
- Internal Dimensions: 38.8mm length, 15.3mm width, 17mm height.
Available in black and white or any customer specific color.
Led Driver Cabinet CP-4
- LED Driver Enclosure CP-4 is made up of Polycarbonate material.
- Internal Dimensions: 71.8mm length, 42mm width, 27.88 height.
- Available in black and white or any customer specific color.
Led Driver Cabinet CP-5
- LED Driver Enclosure CP-5 is made of Polycarbonate material.
- Internal Dimensions:41mm length, 24mm width and 27 mm height.
- Available in black & white or any customer specific color.
Led Driver Cabinet CP-6
- LED Driver Enclosure CP-6 is made up of Polycarbonate material.
- Internal Dimensions: Diameter- 71.5mm, Height- 34.5mm
- Available in black and white or any customer specific color.
Led Driver Cabinet CP-7
- LED Driver Enclosure CP-7 is made up of Polycarbonate material.
- Internal Dimensions: 110mm length, 60mm width, 35mm height.
- Available in black and white or any customer specific color.
Led Driver Cabinet CP-8
- LED Driver Round Enclosure is made up of Polycarbonate material.
- Internal Dimensions: Diameter- 65mm, Height- 28mm.
- Available in black and white or any customer specific color.
Led Driver Cabinet CP-9
- LED Driver Enclosure CP-9 is made up of Polycarbonate material.
- Internal Dimensions: 96mm length, 36mm width, 35mm height.
- Available in black and white or any customer specific color.
Led Driver Cabinet CP-10
- Power Adapter Housing CP-10 is made up of Polycarbonate material.
- Internal Dimensions: 110mm length, 52mm width, 30mm height.
- Available in black and white or any customer specific color.
Led Driver Cabinet CP-11
- LED Driver Enclosure CP-11 is made up of Polycarbonate material.
- Internal Dimensions: 86mm length, 49mm width, 33mm height.
- Available in black and white or any customer specific color.
Led Driver Cabinet CP-12
- LED Driver Enclosure CP-12 is made up of Polycarbonate material.
- Internal Dimensions: Diameter-20mm, Height-44mm
- Available in black and white or any customer specific color.
Led Driver Cabinet CP-13
- LED Driver Enclosure CP-13 is made up of Polycarbonate material.
- Internal Dimensions: 130mm length, 63mm width, 40mm height.
- Available in black and white or any customer specific color.
Led Driver Cabinet CP-14
- LED Driver Enclosure CP-14 is made up of Polycarbonate material.
- Internal Dimensions: 107mm length, 37mm width, 28.5mm height.
- Available in black and white or any customer specific color.
Led Driver Cabinet CP-15
- LED Driver Enclosure CP-15 is made up of Polycarbonate material.
- Internal Dimensions: 34mm length, 64.5mm width, 20mm height.
- Available in black and white or any customer specific color.
Led Driver Cabinet CP-16
- LED Driver Enclosure CP-16 is made up of Polycarbonate material.
- Internal Dimensions: 137.5mm length, 28.5mm width, 23mm height.
- Available in black and white or any customer specific color.
Led Driver Cabinet CP-17
- LED Driver Enclosure CP-17 is made up of Polycarbonate material.
- Internal Dimensions: 65mm length, 28mm width, 16mm height.
- Available in black white or any customer specific color.
Led Driver Cabinet CP-18
- LED Driver Enclosure CP-16 is made up of Polycarbonate material.
- Internal Dimensions: 39.8mm diameter, 23mm width.
- Available in black and white or any customer specific color.
Led Driver Cabinet CP-19
- LED Driver Enclosure CP-19 is made up of Polycarbonate material.
- Internal Dimensions: 99mm length, 53mm width, 32mm height.
- Available in black and white or any customer specific color.
Grill Metal Well Housing
- MS Wire Well Housing available according to your custom design, and custom size.
Aluminium Casing
- Internal Dimensions: 120mm length, 57mm width, 41mm height.
- Polycarbonate side cover with a cable hole and mounting Heights
Elbow/Palm Press Soap 'n' Sanitizer Dispenser
- It is wall mounted and with a capacity of 500ml of liquid sanitizer or soap.
- Fitting Screws, dispenser bottle, funnel are given separately, and instructions of mounting will be given on packaging.
